SDI DATA RATES
SDI-SDI 270 Mb per Second 480i, 576i
HD-SDI 1.485Gbps 720P, 1080i, 1080p30
3G 2.97 Gbps 1080p60 (HD)
6G 5.94 Gbps 2160p30 (Ultra HD)
12G 11.88 Gbps 2160p60 (Ultra HD)



 1080i 720p 24p





Resolution
Pixels by Lines		 1920 x 1080 1280 x 720 1920 x 1080

Frame Rate
29.97
59.94 23.98


Scan Mode
interlaced
progressive progressive


Notes

Most commonly used broadcast recording format

 Generally used by broadcasters who are trying to maximize frequency spectrum and are not concerned with picture quality Predominantly used by Producers to emulate the film look when broadcast on Television, and for use as a recording medium, when the final output is film.
Networks
Airing
CBS, NBC, Discovery HD, TNT HD
FOX, ABC, ESPN
None


Popular formats explained
HDCAM

Color Sampling = 3:1:1, Bandwidth = 143 Mb/s, Compression 7.1:1, Precision = 8 bit, 1440x1080



HDCAM SR (two modes)

Color Sampling = 4:2:2, Bandwidth = 440 Mb/s, Compression 2.7:1, Precision = 10 bit, 1920x1080
Color Sampling = 4:4:4, Bandwidth = 880 Mb/s, Compression 4.2:1, Precision = 10 bit, 1920x1080



D5 (two modes)

Color Sampling = 4:2:2, Bandwidth = 250 Mb/s, Compression 4:1, Precision = 8 bit, 1440x1080
Color Sampling = 4:2:2, Bandwidth = 250 Mb/s, Compression 5:1, Precision = 10 bit, 1440x1080



DVCPRO100

(1080)
Color Sampling = 2.7:1.3:1.3, Bandwidth = 98,5 Mb/s, Compression 6.7:1, Precision = 8 bit, 1280x1080i30
Color Sampling =3:1.5:1.5 Bandwidth = 92 Mb/s, Compression 6.7:1, Precision = 8 bit, 1440x1080i25
(with a special test chart you can see the loss of color resolution, and the  25i color resolution of DVC PRO HD is slightly better than HDCam)

(4:2:2 is wrong! (cause it's referenced to Thin Raster) compared to HDCAM.  Everyone knows HDCAM's real color resolution is 3:1:1, but the resolution of 3:1:1 references to 1920x1080 Full HD, and you should always reference to the full raster)

 (720)
Color Sampling = 3:1.5:1.5, Bandwidth = 98,5 Mb/s, Compression 6.7:1, Precision = 8 bit, 960x720p60
Color Sampling = 3:1.5:1.5, Bandwidth = 82 Mb/s, Compression 6.7:1, Precision = 8 bit, 960x720p50



HDV

(1080)
Color Sampling = 4:2:0, Bandwidth = 25 Mb/s, Compression 22.5:1, Precision = 8 bit, 1440x1080

(720)
Color Sampling = 4:2:0, Bandwidth = 25 Mb/s, Compression 22.5:1, Precision = 8 bit, 1280x720

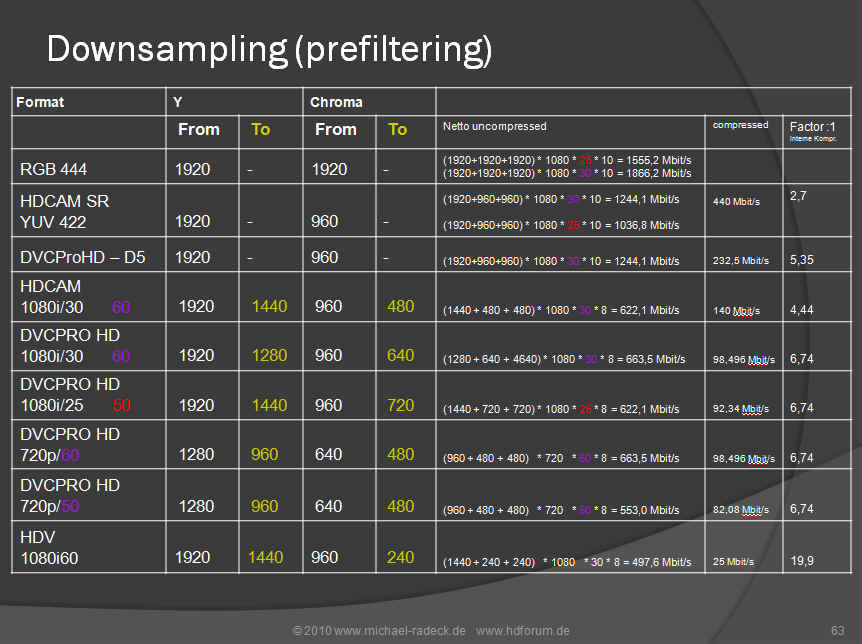

also here 4:2:0 is referenced to thin-raster, so compared to full raster it must be 3:1:0 or 3:1.5:0 depending on format and frame rate (at this moment there is no trustworthy information on HDV, and the table below is used as a reference, but that would be a 3:0.5:0.5 color sampling for HDV, However, this may not be right)
